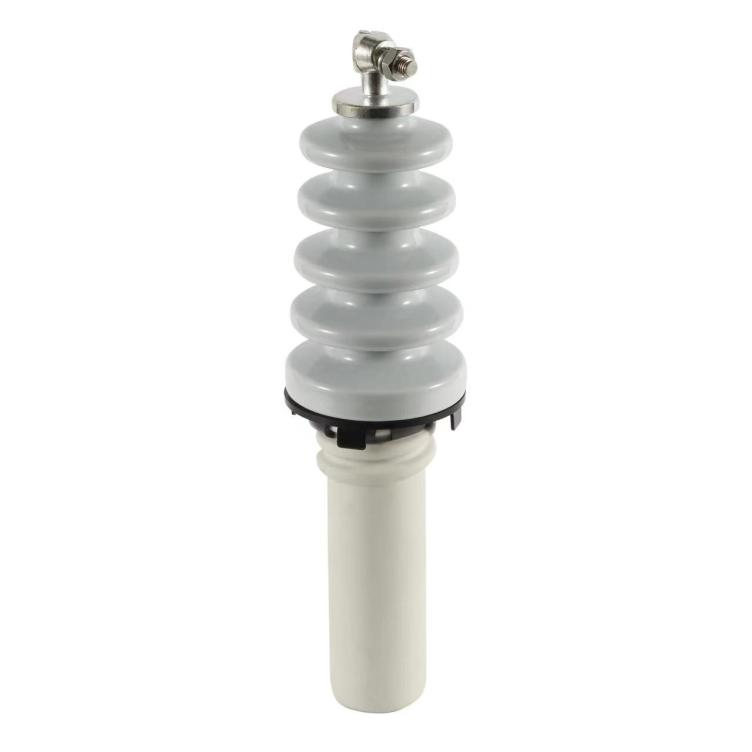

ANSI Transformer Bushings

ANSI Transformer Bushings

Item No.: 00354
ANSI porcelain transformer bushings connect transformer windings to external circuits while insulating conductors from the grounded tank.
Description
Description

ANSI Porcelain Transformer Bushings

These ANSI porcelain transformer bushings are designed for oil-filled power transformers used in substations and industrial power systems. They provide an insulated connection between the transformer winding and the external circuit. With a choice of terminal styles and mounting dimensions, they can be used for new transformers or replacement projects.

The listed ANSI porcelain high-voltage bushings cover 5 to 34.5 kV, 30 to 1600 A and 75 to 200 kV BIL. The wet-process porcelain body has a light gray glaze. A separate 1.2 kV low-voltage range is available in porcelain or epoxy-resin types at 125 to 833 A. For other configurations, our factory supports customization from 1.2 to 46 kV and 30 to 1600 A; the exact combination is subject to technical confirmation.

Technical Specifications

The high-voltage table below lists 5, 8.7, 15, 18, 25, 30/34 and 34.5 kV configurations. Connector options include spade, eyebolt, sidewall-threaded and terminal-post connections. The separate low-voltage table covers 1.2 kV porcelain and epoxy-resin types at 125 to 833 A. Custom configurations may extend the voltage range to 46 kV, subject to design confirmation.

1.2 kV Low-Voltage Bushing Types

Voltage Current Connector Type
1.2 kV 125–833 A Eyebolt
1.2 kV 125–833 A spade
1.2 kV 125–833 A epoxy-resin

High-Voltage ANSI Porcelain Bushing Specifications

Voltage Current Specifications BIL Voltage Current Specifications BIL Voltage Current Specifications BIL
5KV 170A SPADE CONNECTOR 75KV 18KV 75A 7/16" EYEBOLT 125KV 25KV 125A 5/8" EYEBOLT 150KV
5KV 1250A SPADE CONNECTOR 75KV 18KV 100A 7/16" EYEBOLT 125KV 25KV 55A 1 HOLE SPADE 150KV
8.7KV 250A EYEBOLT CONNECTOR 75KV 18KV 125A 7/16" EYEBOLT 125KV 25KV 75A 1 HOLE SPADE 150KV
8.7KV 100A SIDEWALL THREADED 75KV 18KV 30A 7/16" EYEBOLT 125KV 25KV 125A 1 HOLE SPADE 150KV
8.7KV 1600A SPADE CONNECTOR 95KV 18KV 55A 5/8" EYEBOLT 125KV 25KV 125A 2 HOLE SPADE 150KV
15KV 55A 11/32" EYEBOLT 95KV 18KV 75A 5/8" EYEBOLT 125KV 25KV 208A 2 HOLE SPADE 150KV
15KV 75A 11/32" EYEBOLT 95KV 18KV 125A 5/8" EYEBOLT 125KV 25KV 417A 2 HOLE SPADE 150KV
15KV 100A 11/32" EYEBOLT 95KV 18KV 55A 1 HOLE SPADE 125KV 30/34 KV 55A 7/16" EYEBOLT 150KV
15KV 130A 11/32" EYEBOLT 95KV 18KV 75A 1 HOLE SPADE 125KV 30/34 KV 55A 5/8" EYEBOLT 150KV
15KV 30A 11/32" EYEBOLT 95KV 18KV 125A 1 HOLE SPADE 125KV 30/34 KV 55A 1 HOLE SPADE 150KV
15KV 125A 11/32" EYEBOLT 95KV 18KV 208A 2 HOLE SPADE 125KV 30/34 KV 55A 11/32" EYEBOLT 150KV
15KV 55A 7/16" EYEBOLT 95KV 18KV 417A 2HOLE SPADE 125KV 30/34 KV 55A 7/16" EYEBOLT 150KV
15KV 75A 7/16" EYEBOLT 95KV 18KV 75A 11/32" EYEBOLT 125KV 30/34 KV 55A 5/8" EYEBOLT 150KV
15KV 100A 7/16" EYEBOLT 95KV 18KV 75A 7/16" EYEBOLT 125KV 30/34 KV 75A 7/16" EYEBOLT 150KV
15KV 100A 7/16" EYEBOLT 95KV 18KV 75A 5/8" EYEBOLT 125KV 30/34 KV 75A 5/8" EYEBOLT 150KV
15KV 125A 7/16" EYEBOLT 95KV 18KV 75A 1 HOLE SPADE 125KV 30/34 KV 75A 1 HOLE SPADE 150KV
15KV 55A 5/8" EYEBOLT 95KV 18KV 75A 2 HOLE SPADE 125KV 30/34 KV 75A 15/16" EYEBOLT  150KV
15KV 75A 5/8" EYEBOLT 95KV 25KV 125A 7/16" EYEBOLT 125KV 30/34 KV 75A 5/8" EYEBOLT 150KV
15KV 125A 5/8" EYEBOLT 95KV 25KV 125A 2 HOLE SPADE 125KV 30/34 KV 75A 5/8" EYEBOLT 150KV
15KV 208A 5/8" EYEBOLT 95KV 25KV 55A 11/32" EYEBOLT 150KV 30/34 KV 75A 1 HOLE SPADE 150KV
15KV 55A 1 HOLE SPADE 95KV 25KV 75A 11/32" EYEBOLT 150KV 30/34 KV 75A 1 HOLE SPADE 150KV
15KV 75A 1 HOLE SPADE 95KV 25KV 100A 11/32" EYEBOLT 150KV 30/34 KV 55A 7/16" EYEBOLT 150KV
15KV 125A 1 HOLE SPADE 95KV 25KV 55A 7/16" EYEBOLT 150KV 30/34 KV 75A 7/16" EYEBOLT 150KV
15KV 125A 2 HOLE SPADE 95KV 25KV 75A 7/16" EYEBOLT 150KV 30/34 KV 75A 7/16" EYEBOLT 150KV
15KV 208A 2 HOLE SPADE 95KV 25KV 100A 7/16" EYEBOLT 150KV 30/34 KV 75A 5/8" EYEBOLT 150KV
15KV 417A 2 HOLE SPADE 95KV 25KV 125A 7/16" EYEBOLT 150KV 30/34 KV 75A 15/16" EYEBOLT  150KV
15KV 75A 11/32" EYEBOLT 95KV 25KV 55A 5/8" EYEBOLT 150KV 30/34 KV 125A 7/16" EYEBOLT 150KV
15KV 125A 7/16" EYEBOLT 95KV 25KV 75A 5/8" EYEBOLT 150KV 30/34 KV 125A 5/8" EYEBOLT 150KV
15KV 125A 2 HOLE SPADE 95KV 25KV 125A 5/8" EYEBOLT 150KV 30/34 KV 125A 1 HOLE SPADE 150KV
15KV 208A 5/8" EYEBOLT 95KV 25KV 55A 1 HOLE SPADE 150KV 30/34 KV 125A 2 HOLE SPADE 150KV
15KV 208A 2 HOLE SPADE 95KV 25KV 75A 1 HOLE SPADE 150KV 30/34 KV 125A 2 HOLE SPADE 150KV
15KV 208A 4 HOLE SPADE, 3/8" THICK 95KV 25KV 125A 1 HOLE SPADE 150KV 30/34 KV 125A 7/16" EYEBOLT 150KV
15KV 208A 6 HOLE SPADE, 3/8" THICK 95KV 25KV 125A 2 HOLE SPADE 150KV 30/34 KV 125A 2 HOLE SPADE 150KV
15KV 208A 8 HOLE SPADE, 3/8" THICK 95KV 25KV 208A 2 HOLE SPADE 150KV 30/34 KV 208A 2 HOLE SPADE 150KV
15KV 600A 6 HOLE SPADE, 3/8" THICK  95KV 25KV 417A 2 HOLE SPADE 150KV 30/34 KV 208A 1 HOLE SPADE 150KV
15KV 1600A SPADE CONNECTOR 110KV 25KV 55A 11/32" EYEBOLT 150KV 30/34 KV 208A 2 HOLE SPADE 150KV
15KV 500A SPADE CONNECTOR 95KV 25KV 75A 11/32" EYEBOLT 150KV 34.5KV 800A #2 SOL - 1000 MCM 200KV
15KV 250A SPADE CONNECTOR 95KV 25KV 100A 11/32" EYEBOLT 150KV 34.5KV 417A 15/16" EYEBOLT  200KV
18KV 55A 11/32" EYEBOLT 125KV 25KV 55A 7/16" EYEBOLT 150KV 34.5KV 250A 15/16" EYEBOLT 200KV
18KV 75A 11/32" EYEBOLT 125KV 25KV 75A 7/16" EYEBOLT 150KV 34.5KV 800A 1 1/8" TERMINAL POST 200KV
18KV 100A 11/32" EYEBOLT 125KV 25KV 100A 7/16" EYEBOLT 150KV 34.5KV 250A 2 HOLE SPADE 3/8" THICK 200KV
18KV 130A 11/32" EYEBOLT 125KV 25KV 125A 7/16" EYEBOLT 150KV 34.5KV 800A 4 HOLE SPADE 3/8" THICK 200KV
18KV 30A 11/32" EYEBOLT 125KV 25KV 55A 5/8" EYEBOLT 150KV ANSI HV Bushing
18KV 55A 7/16" EYEBOLT 125KV 25KV 75A 5/8" EYEBOLT 150KV

For other bushing types, our factory supports customization: voltage from 1.2 to 46 kV and rated current from 30 to 1600 A. Please confirm the required voltage, current, insulation material and connector design for a specific model.

Contact Us

Product and Factory Photos

Practical Application of ANSI Porcelain Bushing in Transformers
Application of ANSI Porcelain Bushing in Transformers
ANSI Porcelain Bushing

Applications

Substations and Industrial Power Systems

A porcelain bushing carries an electrical conductor through the transformer tank while insulating it from the grounded tank wall. These power transformer bushings provide the connection between internal winding leads and external cables or busbars.

New Power Transformers

For a new oil-filled power transformer, the bushing connects the winding to the external circuit. The voltage class, continuous current, BIL, tank mounting and terminal arrangement are key parts of the transformer bushing specification.

Replacement and Retrofit

Power transformer bushing replacement involves both electrical ratings and mechanical fit. The tank opening, mounting dimensions, oil-side length and terminal connection are important for interchangeability; a similar voltage rating alone does not establish a direct replacement.

See the ANSI transformer bushing selection guide.

Why Choose NJREC?

Porcelain Insulation

The wet-process porcelain body provides electrical insulation around the conductor. Its light gray glazed surface forms the external insulation of the bushing.

Connection Choices

The range offers several terminal forms for different winding leads and external connections. Spade options include one-, two-, four-, six- and eight-hole configurations, alongside eyebolt, sidewall-threaded and terminal-post connections.

Technical Selection Support

NJREC can review electrical ratings and connection arrangements for new transformer installations and replacement projects. This support covers voltage class, rated current, BIL, mounting dimensions and terminal compatibility.

IEC and IEEE Standards

IEC 60137:2017 is the relevant IEC standard for insulated AC bushings above 1 kV. For applicable oil-filled power transformer models, IEEE C57.19.00-2023 covers general requirements and test procedures when BIL is above 110 kV; IEEE C57.19.01-2017 sets performance and dimensional requirements when BIL is 150 kV or higher. The 75, 95 and 110 kV BIL configurations fall outside those IEEE scopes.

FAQ

What ratings does NJREC offer for ANSI porcelain transformer bushings?

The listed high-voltage porcelain models cover 5–34.5 kV, 30–1600 A and 75–200 kV BIL. Low-voltage porcelain and epoxy-resin types are available at 1.2 kV and 125–833 A. Other configurations may be customized across 1.2–46 kV and 30–1600 A, subject to confirmation of the specific design. Each model has its own voltage, current and, where applicable, BIL combination.

Are all ANSI bushings spade-type?

No. The listed high-voltage ANSI porcelain models include spade, eyebolt, sidewall-threaded and terminal-post connections. The 1.2 kV porcelain type offers eyebolt or spade options; the epoxy-resin type requires connector confirmation for the selected design. These options accommodate different winding leads, cables and busbar connections.

What should you compare when choosing an ANSI transformer bushing manufacturer?

Compare the available voltage classes, rated currents, BIL ratings, terminal options and technical support. For replacement work, mounting dimensions, tank opening, oil-side length and terminal arrangement also matter. The bushing current rating must meet the required continuous winding current.
